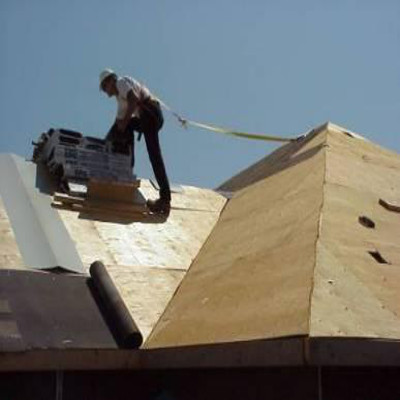

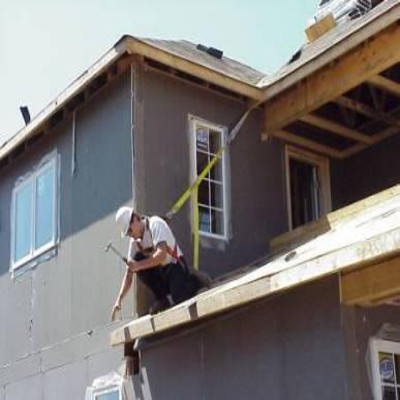

Non-reusable webbing strap that provides anchorage for personal fall arrest on top plate, roof truss or floor.
Phase of Construction |
Floor sheathing, floor joist installation, truss installation, window installation, siding |
Manufacturer’s Device Page |
Safe-T-Strap |
Installation |
Two 3” ardox nails secure folded stitched end of strap to secured top plate or truss, strap is wrapped around 2x4 or truss and third nail is installed through both strap surfaces; on floor 3” nail is inserted through stitched looped end opposite D-ring then 4 double-head nails are nailed into stitched area of strap through sheathing and floor joist below. Lanyard must be connected between worker and safe-t-strap. Nails are provided; strap cannot be reused. Structure must be able to support forces from fall. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
email [email protected] |
Video |
Video |
